1000w 220v y.b.Sodyum balast

/1000w 220v y.b.Sodyum balast
1000w 220v y.b.Sodyum balast2020-08-07T18:11:11+03:00

Gaz Deşarj Lambalar İçin Manyetik Balast Kit

Yüksek Basınçlı Metal Halide Ve Sodyum Buharlı Lamba Balast Kit

FBMN1000K-Y 220-240v 50 Hz

Seri ve Paralel sistemler için HID Balast

FBMN1000K-220-Y

Ürün Verileri

Genel Bilgiler ( General İnformation )



Sistem Özellikleri ( System Features )



Ürün Kodu
Product  Code

FBMN1000K-Y

Çalışma Güç HI (Metal Halide )
operation Power HI ( metal Halide)

1000 W

Lamba Türü
Lamps Type

HPI-T / HRI-T / HSI-T / HQI-T / HSI-TD / HRI-TS / HQI-TS /

Çalışma Güç MB (Sodyum Buharlı )
operation Power HI ( metal Halide)



1000 W

Lamba Sayısı
Lamps Number

1 Adet

Kablolama ( Cabling )



Çalışma Ve Elektriksel Bilgiler ( Study and electrical information )

Kablo Bağlantı Kesiti
Cabling cross section

1,5 – 3 mm2



Çalışma Gerilimi
Operating Voltage

220 ~ 230 V Ac

Sıcaklık ( Heat )



Çalışma Frekansı
Operating Frequency

50  Hz

 Max. Bobinaj Çalışma Sıcaklığı

 Max. Coil Working Temperature

130 oC

Şebeke Gerilim Performansı

Mains Voltage Performance

-7% – +5%        AC

Delta-T Normal Koşullar

Delta-T Normal Conditions

Δt 70/ 90 oC

PF kompanzasyon Güç Faktörü (Nom)

Power factor PF Compensation

Cos      0.55



 Max. Depolama Sıcaklığı
Max. Storage temperature

75 oC

Şebeke Gerilim Güvenliği

Mains voltage Safety

-10% – +10%   AC

 Min. Depolama Sıcaklığı
Min. Storage temperature

-20 oC

Max. Çalışma Akımı
Max. Operation Current

9.0 A

Ürün Ambalaj ( Product Packaging )



Max. Başlama Akımı
Max. Starting Current

13 A

Ürün Ağırlığı
Product weight

10,6 kg

Kapasitör
Capacitor

85 – 100 uF 250 V



Ürün Onay Ve Sertifika

 ( Product approval and certificate )

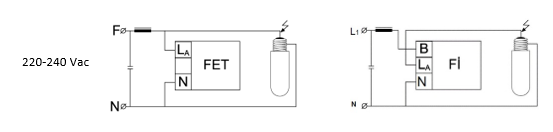

Bağlantı Krokisi ( Wiring Diagram )

FBMN 1000K-Y

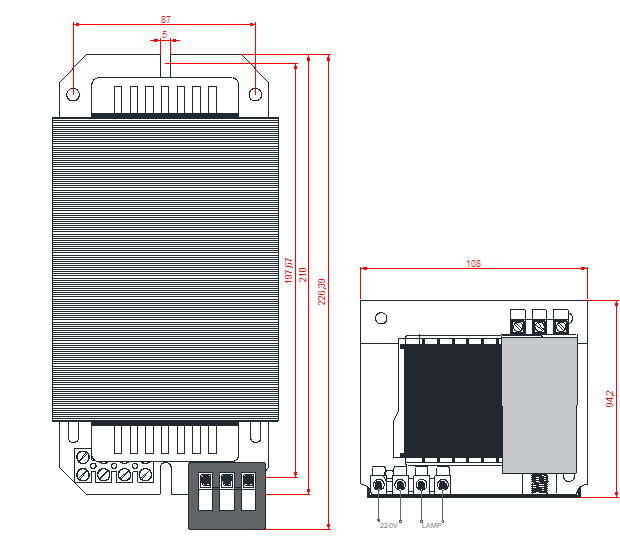

Ürün Boyutları (mm) ( Product Dimensions )mm

FBMN 1000K-Y-1
